High-Quality 7.5W series, 12W series, 18W series, 24W series, 30W series, 40W series, 50.4W series, External Power Supplies Fixed wall-plug-in type Manufacturer, Factories

We design and manufacture beautiful appearance power supply. With the advantages of excellent quality, this power supply is highly praised by customers. We could make External Power Supplies Fixed wall-plug-in type models, such as, 7.5W series, 12W series, 18W series, 24W series, 30W series, 40W series, 50.4W series, and so on.

Send Inquiry

Product Description

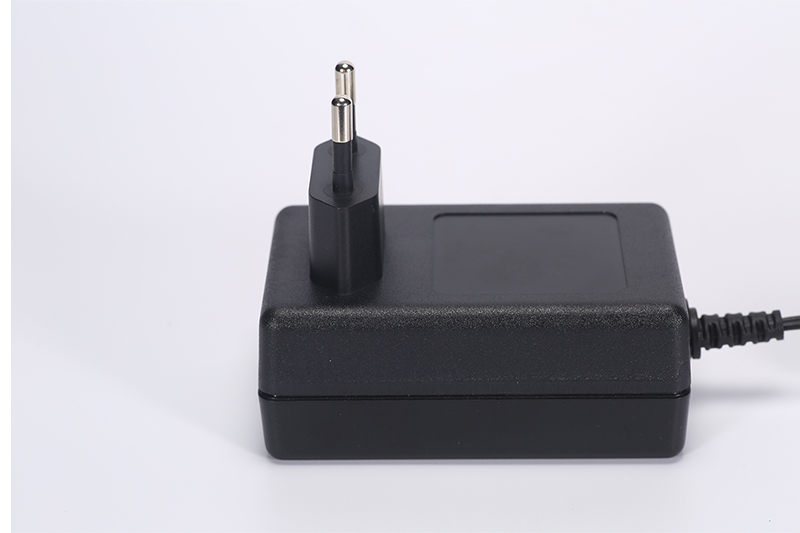

DYS824 24W

OUTPUT	Voltage (DC)	4.0-7.5V	7.6-13V	13.1-19V	19.1-30V
	Current (Max.)	4A	2.5A	1.8A	1.25A
	Power (Max.)	21.2W	24W	24W	24W
	Ripple & Noise	≤240mV
	Voltage Tolerance	±5%
	Standby Power	<0.1W
INPUT	Voltage Range	100-240VAC
	Frequency	50-60Hz
	Current	0.7A Max.
ENVIRONMENT	Operation Temp.	0°C to +45°C
	Storage Temp.	-20°C to +80°C
	Operation HUM	10%-90%
SAFETY	Safety Certificates	62368, 61558 CB, cULus, FCC, CE, GS, UKCA, RCM, CCC, PSE, KC
Other	MTBF	50,000 hours at 80% load and 25°C
	Dimension	US: 76.8 x 48.0 x 31.0 mm EU: 76.8 x 48.0 x 30.0 mm UK: 76.8 x 50.0 x 37.0 mm AU: 76.8 x 54.5 x 39.0 mm

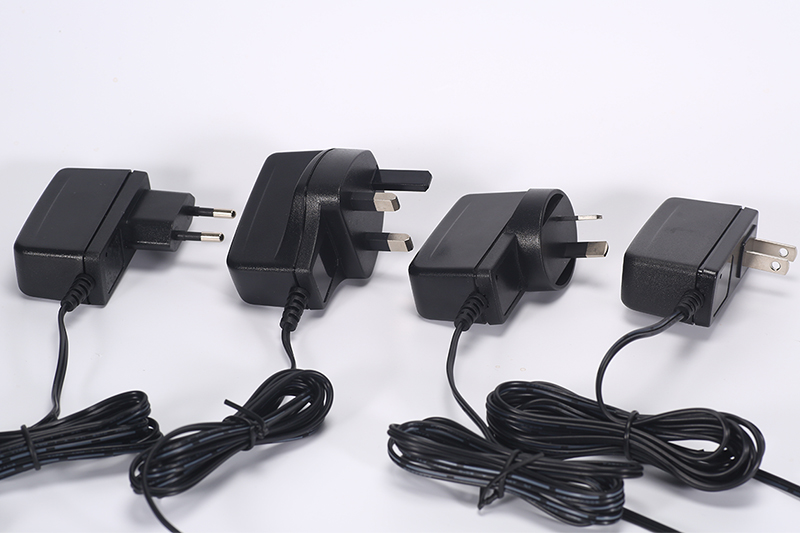

DYS806 7.5W

OUTPUT	Voltage (DC)	4.0-7.9V	8.0-12.0V
	Current (Max.)	1.5A	0.93A
	Power (Max.)	7.5W
	Ripple & Noise	≤200mV
	Voltage Tolerance	±5%
	Standby Power	≤0.1W
INPUT	Voltage Range	100-240VAC
	Frequency Range	50-60Hz
	Current	0.3A Max.
ENVIRONMENT	Operation Temp.	0°C to +45°C
	Storage Temp.	-20°C to +80°C
	Operation HUM	10%-90%
SAFETY	Safety Certificates	62368, 61558 CB, cULus, FCC, CE, GS, UKCA, RCM, CCC, PSE
Other	MTBF	>50,000 hours at 80% load and 25°C
	Dimension (S)	US/EU: 66.3 x 36.5 x 24.1 mm UK: 66.3 x 36.5 x 49.5 mm AU: 66.3 x 36.5 x 40.0 mm
	Dimension (W)	US/EU: 60.0 x 39.0 x 26.0 mm UK: 60.0 x 49.5 x 34.0 mm AU: 60.0 x 39.0 x 35.0 mm

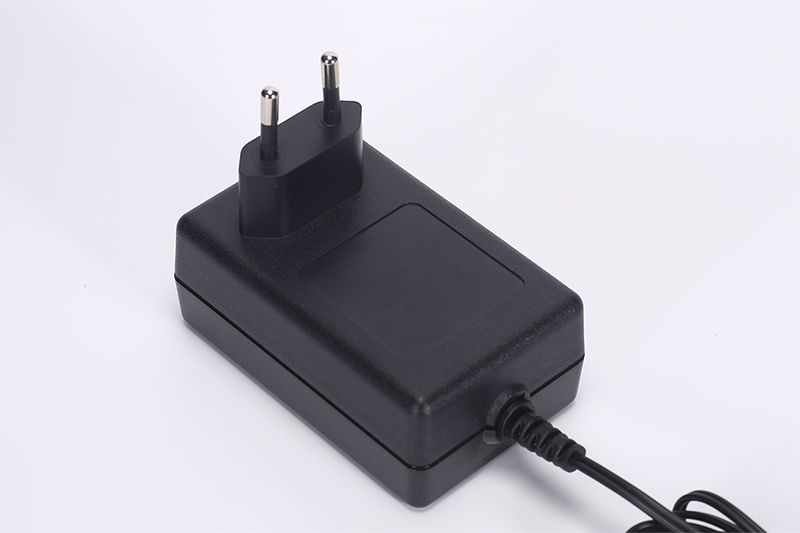

DYS816 18W

OUTPUT	Voltage (DC)	4.0-7.5V	7.6-13V	13.1-19V	19.1-30V
	Current (Max.)	4A	2.5A	1.8A	0.94A
	Power (Max.)	15W	18W	18W	18W
	Ripple & Noise	≤240mV
	Voltage Tolerance	±5%
	Standby Power	0.1W
INPUT	Voltage	100-240VAC
	Frequency	50-60Hz
	Current	0.5A Max.
ENVIRONMENT	Operation Temp.	0°C to +45°C
	Storage Temp.	-20°C to +80°C
	Operation HUM	10%-90%
SAFETY	Safety Certificates	62368, 61558 CB, cULus, FCC, CE, GS, UKCA, RCM, CCC, PSE, KC
Other	MTBF	50,000 hours at 80% load and 25°C
	Dimension	US: 76.8 x 48.0 x 31.0 mm EU: 76.8 x 48.0 x 30.0 mm UK: 76.8 x 50.0 x 37.0 mm AU: 76.8 x 54.5 x 39.0 mm

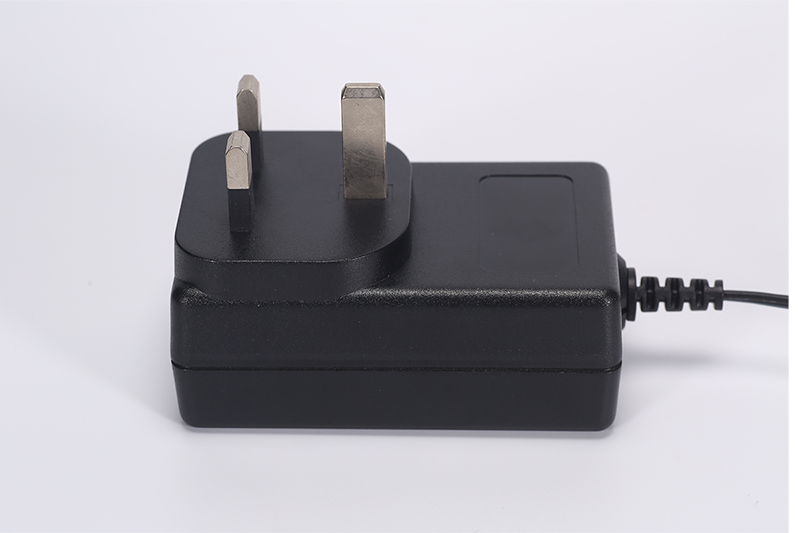

DYS818 18W

OUTPUT	Voltage (DC)	5V	9V	12V
	Current (Max.)	3A	2A	1.5A
	Power (Max.)	15W	18W	18W
	Ripple & Noise	≤150mV
	Voltage Tolerance	±5%
	Standby Power	<0.1W
INPUT	Voltage	100-240VAC
	Frequency	50-60Hz
	Current	0.5A Max.
ENVIRONMENT	Operation	0°C to +45°C
	Storage Temp.	-20°C to +80°C
	Operation HUM	10%-90%
SAFETY	Safety Certificates	62368, 61558 CB, cULus, FCC, GS, UKCA, RCM, CCC, PSE
Other	MTBF	>50,000 hours at 80% load and 25°C
	Dimension (S)	US/EU: 67.5 x 45.5 x 34.5 mm EU: 67.5 x 45.5 x 28.0 mm UK: 66.0 x 49.0 x 34.5 mm AU: 64.8 x 43.5 x 35.0 mm
	Dimension (W)	US/EU: 67.5 x 45.5 x 34.5 mm UK: 66.0 x 49.0 x 34.5 mm AU: 64.8 x 43.5 x 35.0 mm

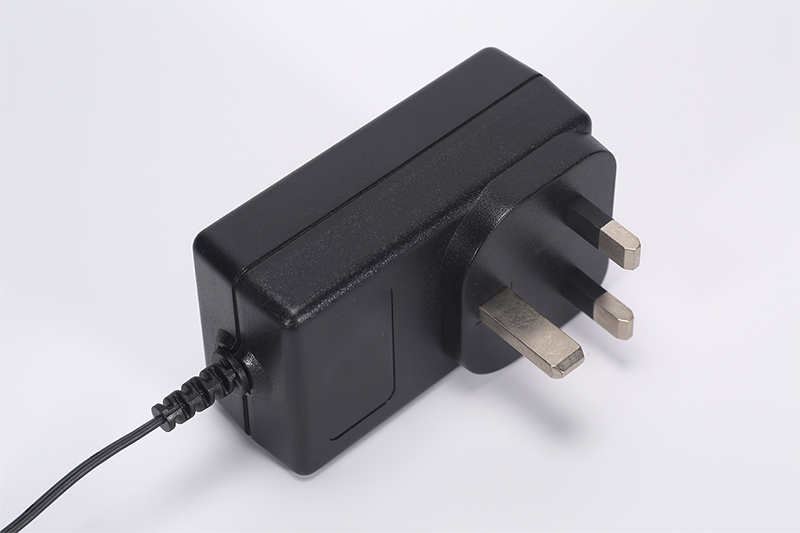

DYS830 30W

OUTPUT	Voltage (DC)	5.0-7.5V	7.6-11.9V	12.0-13.0V	13.1-19.0V	19.1-30.0V
	Current (Max.)	4A	3A	2.5A	2.29A	1.57A
	Power (Max.)	24W	27W	30W	30W	30W
	Ripple & Noise	≤300mV
	Voltage Tolerance	±5%
	Standby Power	<0.1W
INPUT	Voltage	100-240VAC
	Frequency	50-60Hz
	Current	0.8A Max.
ENVIRONMENT	Operation Temp.	0°C to +45°C
	Storage Temp.	-20°C to +80°C
	Operation HUM	10%-90%
SAFETY	Safety Certificates	62368, 61558 CB, cULus, FCC, CE, GS, UKCA, RCM, CCC, PSE
Other	MTBF	>50,000 hours at 80% load and 25°C
	Dimension	US: 76.8 x 48.0 x 31.0 mm EU: 76.8 x 48.0 x 30.0 mm UK: 76.8 x 50.0 x 37.0 mm AU: 76.8 x 54.5 x 39.0 mm

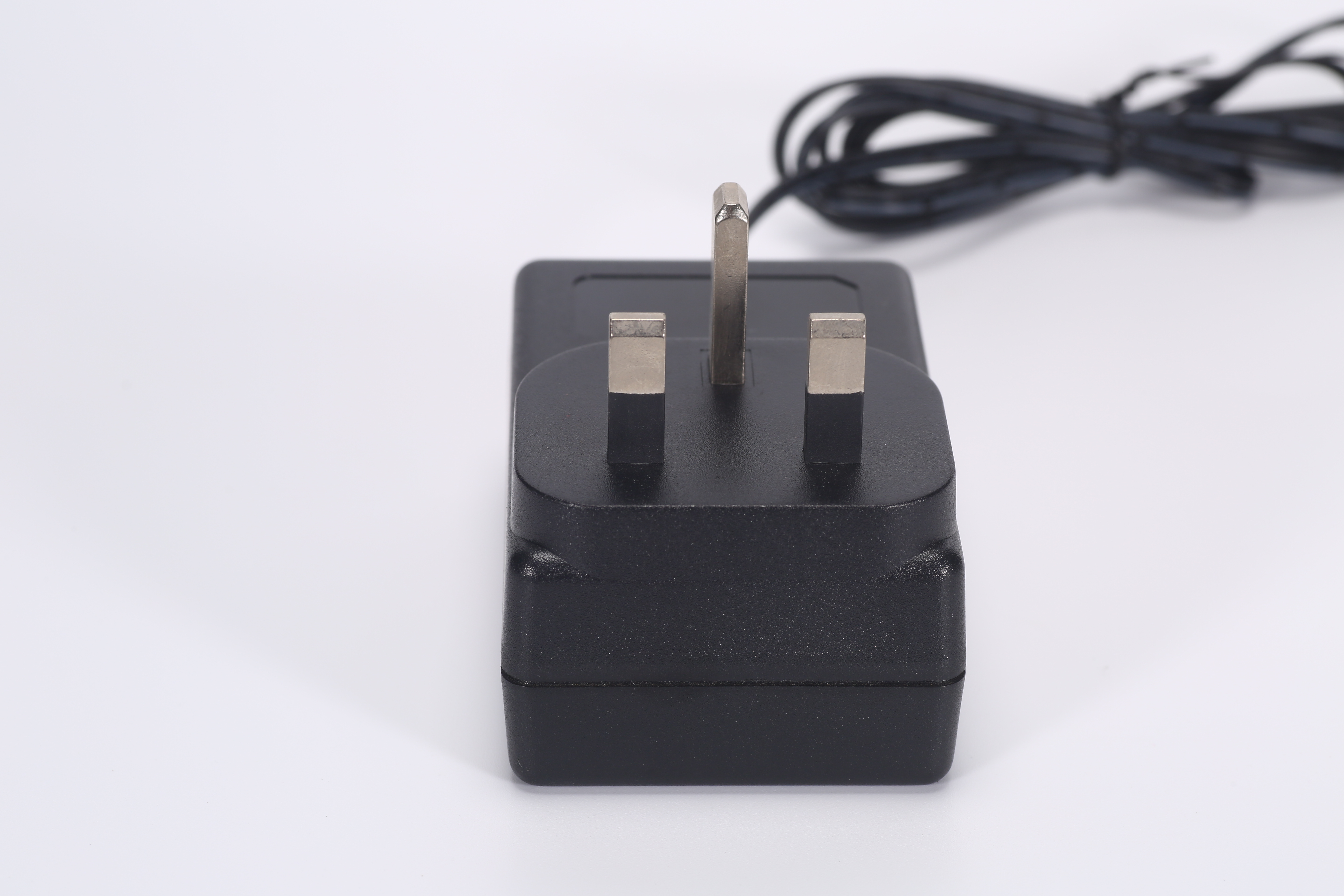

DYS850 50.4W

OUTPUT	Voltage (DC)	9V	9.1-14V	14.1-23V	23.1-30V
	Current (Max.)	5A	4.2A	3.36A	2.1A
	Power (Max.)	45W	50.4W	50.4W	50.4W
	Ripple & Noise	≤300mV
	Voltage Tolerance	±5%
	Standby Power	≤0.1W	≤0.21W	<0.21W	<0.21W
INPUT	Voltage	100-240VAC
	Frequency	50-60Hz
	Current	1.3A Max.
ENVIRONMENT	Operation Temp.	0°C to +45°C
	Storage Temp.	-20°C to +80°C
	Operation HUM	10%-90%
SAFETY	Safety Certificates	62368, 61558 CB, cULus, FCC, CE, GS, UKCA, RCM, CCC, PSE, KC
Other	MTBF	50,000 hours at 80% load and 25°C
	Dimension	US: 84.0 x 52.5 x 32.0 mm EU: 84.0 x 52.50 x 32.0 mm UK: 84.0 x 52.5 x 38.5 mm AU: 84.0 x 54.5 x 40.0 mm

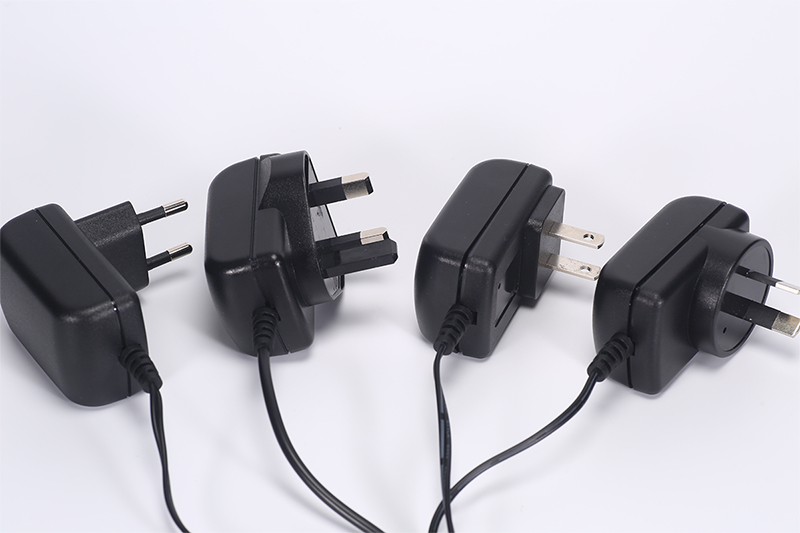

DYS812 12W

OUTPUT	Voltage (DC)	4.5-6.5V	6.6-12V	12.1-16V	16.1-24V
	Current (Max.)	2.1A	1.5A	0.8A	0.66A
	Power (Max.)	12W
	Ripple & Noise	≤200mV
	Voltage Tolerance	±5%
	Standby Power	0.1W
INPUT	Voltage Range	100-240VAC
	Frequency Range	50-60Hz
	Current	0.35A Max.
ENVIRONMENT	Operation Temp.	0°C to +45°C
	Storage Temp.	-20°C to +80°C
	Operation HUM	10%-90%
SAFETY	Safety Certificates	62368, 61558 CB, cULus, FCC, CE, GS, UKCA, RCM, CCC, PSE, KC, BSMI
Other	MTBF	>50,000 hours at 80% load and 25°C
	Dimension (S)	US/EU: 66.3 x 36.5 x 24.1 mm UK: 66.3 x 36.5 x 49.5 mm AU: 66.3 x 36.5 x 40.0 mm
	Dimension (W)	US/EU: 67.5 x 45.5 x 34.5 mm UK: 66.0 x 49.0 x 34.5 mm AU: 64.8 x 43.5 x 35.0 mm

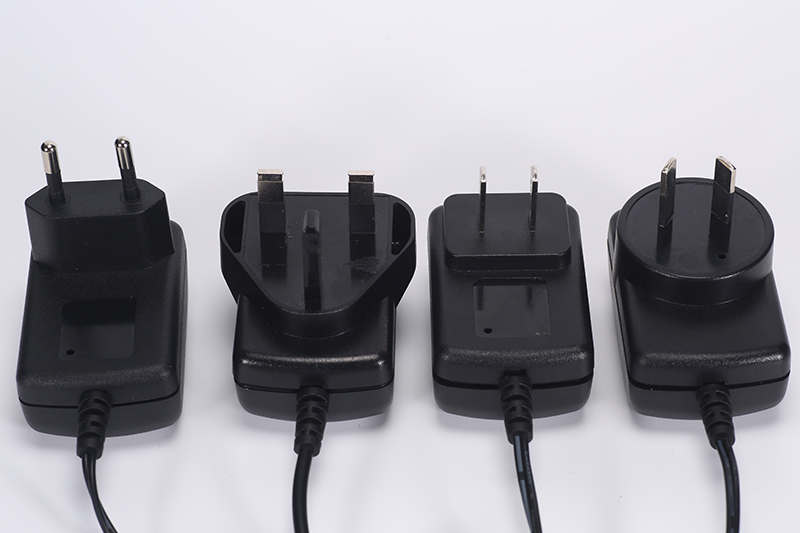

DYS815 12W

OUTPUT	Voltage (DC)	5V	12V
	Current (Max.)	2A	1A
	Power (Max.)	12W
	Ripple & Noise	≤150mV
	Voltage Tolerance	±5%
	Standby Power	0.1W
INPUT	Voltage Range	100-240VAC
	Frequency Range	50-60Hz
	Current	0.35A Max.
ENVIRONMENT	Operation Temp.	0°C to +45°C
	Storage Temp.	-20°C to +80°C
	Operation HUM	10%-90%
SAFETY	Safety Certificates	62368, 61558 CB, cULus, FCC, CE, GS, UKCA, RCM, CCC, PSE, KC, BSMI
Other	MTBF	>50,000 hours at 80% load and 25°C
	Dimension (S)	US/EU: 6.3 x 36.5 x 24.1 mm UK: 66.3 x 36.5 x 49.5 mm AU: 66.3 x 36.5 x 40.0 mm
	Dimension (W)	US/EU: 67.5 x 45.5 x 34.5 mm UK: 66.0 x 49.0 x 34.5 mm AU: 64.8 x 43.5 x 35.0 mm

Frequently Asked Questions (FAQ)

1. What safety standards do these power adapters comply with?

These power supplies are designed and certified in compliance with major global safety standards, specifically the 62368 and 61558 standards. They hold reputable certifications including CB, cULus, FCC, CE, GS, UKCA, RCM, CCC, PSE, KC, and BSMI depending on the model.

2. Are these adapters suitable for international use?

Yes, all listed models support a wide universal input voltage range of 100-240VAC with a frequency range of 50-60Hz. This ensures they can operate reliably in various regions worldwide when paired with the corresponding plug type.

3. What is the standby power consumption of these devices?

These products are engineered for high efficiency. Most models feature a standby power consumption of less than or equal to 0.1W, while the higher-capacity models (such as the 50.4W version) maintain a low standby usage of less than 0.21W.

4. What is the operating temperature range for these power supplies?

The optimal operating temperature range is between 0°C and +45°C. For storage, they can withstand ambient temperatures ranging from -20°C to +80°C with operational humidity levels between 10% and 90%.

5. What is the expected lifespan (MTBF) of these power adapters?

Each model boasts an MTBF (Mean Time Between Failures) rating of over 50,000 hours, tested under an 80% load condition at an ambient temperature of 25°C, ensuring high long-term reliability.

6. What dimensions and plug types are available?

Multiple dimensional layouts are available for US, EU, UK, and AU plug types to match local wall outlet standards. The specifications list specific dimensions for both standard (S) and wide (W) housing structures to suit different spatial requirements.
