High-Quality 24W series and 50.4W series Medical Power Supplies Fixed wall-plug-in type Factory, Factories
1 / 1

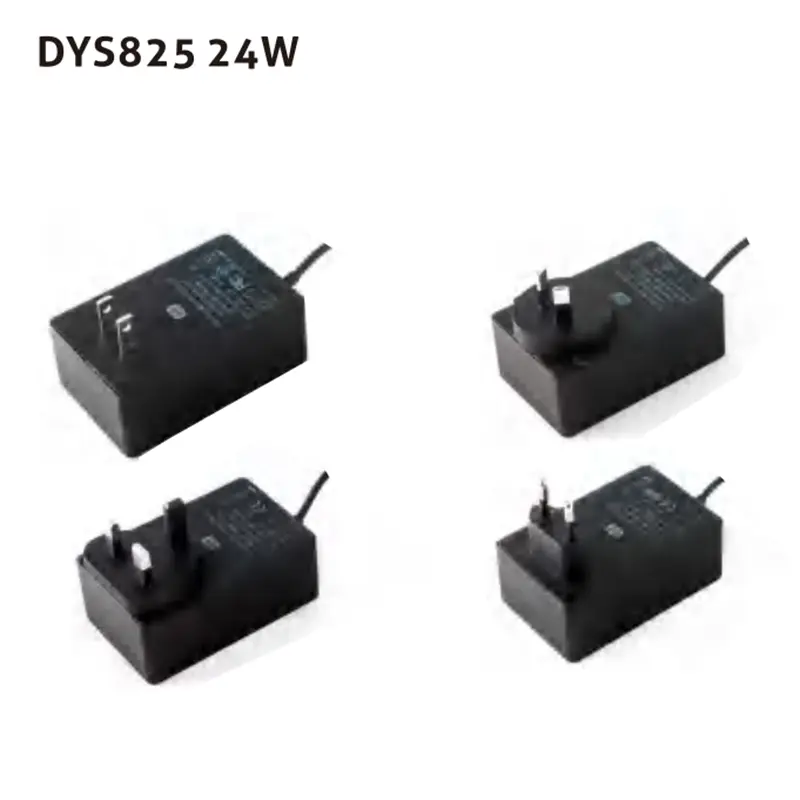

High-Quality 24W series and 50.4W series Medical Power Supplies Fixed wall-plug-in type Factory, Factories

High-Quality 24W series and 50.4W series Medical Power Supplies Fixed wall-plug-in type Factory, Factories

We focus on Medical Power Supplies. We could make l Power Supplies Fixed wall-plug-in type models, such as 24W series, 50.4W series, and so on.

Send Inquiry

Product Description

Energy Storage System - Product Specification

OUTPUT Voltage (DC) 4-7.5V 7.6-13V 13.1-19V 19.1-30V 30.1-48V
Current (Max.) 4A 2.66A 1.8A 1.25A 0.7A
Power (Max.) 21.2W 24W 24W 24W 24W
Ripple & Noise ≤ 150 mV ≤ 150 mV ≤ 200 mV ≤ 200 mV ≤ 300 mV
Voltage Tolerance ±5%
Standby Power <0.1W
INPUT Voltage Range 100-240VAC
Frequency 50-60Hz
ENVIRONMENT Operation Temp 0℃ to +40℃
Storage Temp. -20℃ to +80℃
Operation HUM 10%-90%
SAFETY Safety Standards 60601, CB, cULus, FCC, CE, TUV Mark, AU plug report
Other MTBF >50,000 hours at 80% load and 25℃
Dimension US/EU: 76.8 x 48.0 x 31.0 mm
UK: 76.8 x 50.0 x 37.0 mm
AU: 76.8 x 54.5 x 39.0 mm

Why Select Us?

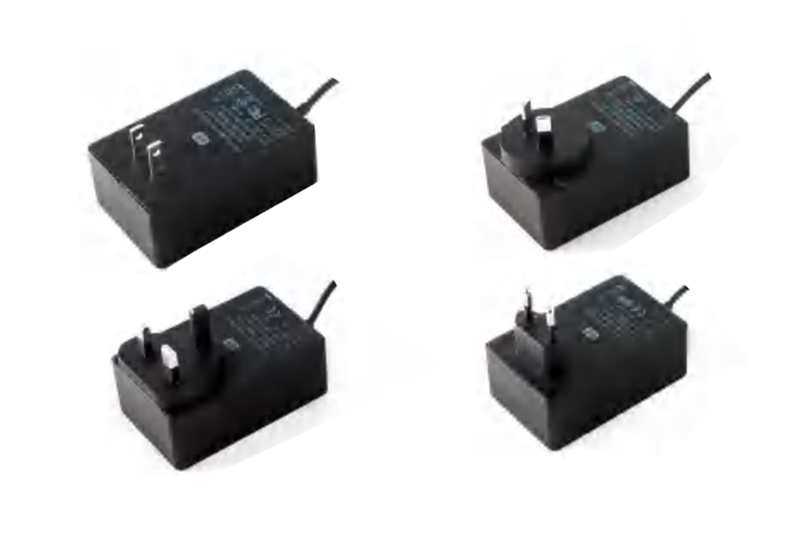

DYS825 24W-2
  • ☑ Our price will be reasonable. We offer OEM and ODM service.
  • ☑ We could provide packing according to customers' requirements.
  • ☑ Quality first. We focus on our products' quality.
  • ☑ We operate with honesty and transparency in all our business dealings.

Frequently Asked Questions

What is the range of output voltage and power for this system?
The system supports an output voltage ranging from 4V to 48V (divided into specific ranges: 4-7.5V, 7.6-13V, 13.1-19V, 19.1-30V, and 30.1-48V) with a maximum power output of up to 24W (21.2W for the 4-7.5V range).
What safety certifications does this product hold?
This product meets multiple international safety standards, including 60601, CB, cULus, FCC, CE, TUV Mark, and features an AU plug report.
What are the environmental limits for operation and storage?
The device operates in temperatures from 0℃ to +40℃ and can be stored in temperatures ranging from -20℃ to +80℃, with operating humidity levels between 10% and 90%.
What services do you offer regarding customization and packaging?
We provide both OEM and ODM services at reasonable prices. Custom packaging can also be designed and supplied to match specific customer requirements.
What is the reliability and lifespan expectation (MTBF) of the product?
The Mean Time Between Failures (MTBF) is rated at greater than 50,000 hours under 80% load conditions at a ambient temperature of 25℃.
What are the physical dimensions of the product?
The dimensions depend on the plug standard: US/EU specifications are 76.8 x 48.0 x 31.0 mm, UK specifications are 76.8 x 50.0 x 37.0 mm, and AU specifications are 76.8 x 54.5 x 39.0 mm.
