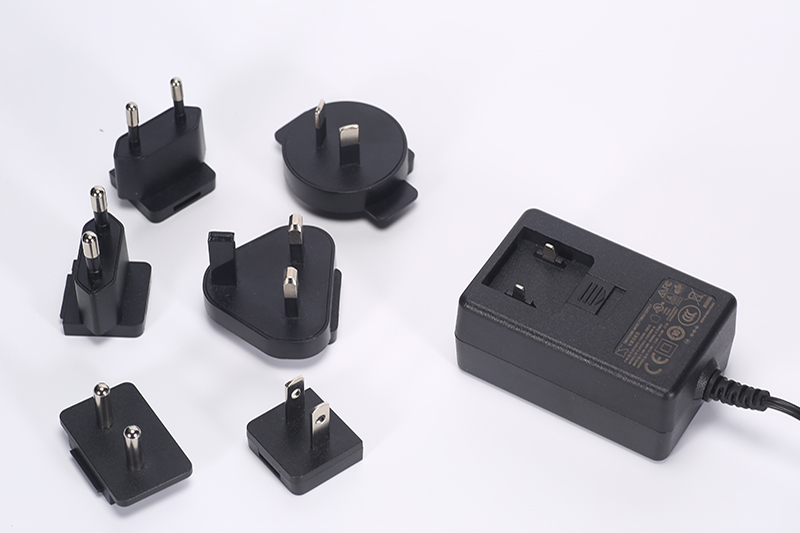

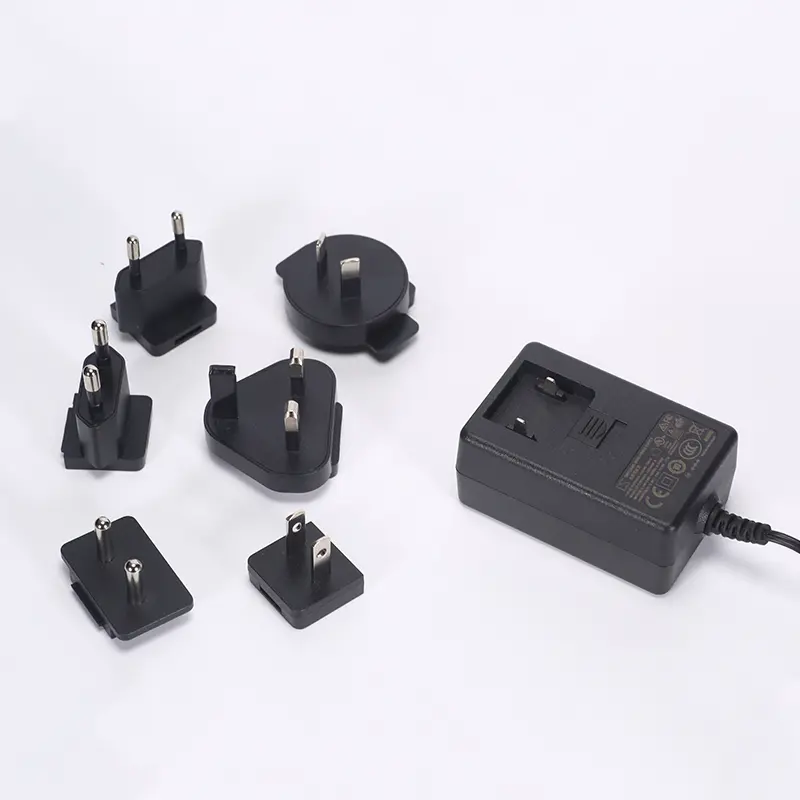

| OUTPUT | Voltage (DC) | 4.0-7.5V | 7.6-13V | 13.1-19V | 19.1-30V |
| Current (Max.) | 4A | 2.5A | 1.8A | 1.25A | |
| Power (Max.) | 21.2W | 24W | 24W | 24W | |
| Ripple & Noise | ≤ 240mV | ||||
| Voltage | ± 5% | ||||
| Standby Power | < 0.1W | ||||
| INPUT | Voltage | 100-240VAC | |||
| Frequency | 50-60Hz | ||||
| Current | 0.7A Max. | ||||
| ENVIRONMENT | Operation | 0°C to +45°C | |||
| Storage Temp. | -20°C to +80°C | ||||
| Operation HUM | 10% - 90% | ||||
| SAFETY | Safety | 6236861558 | |||
| Other | MTBF | > 50,000 hours at 80% load and 25°C | |||
| Dimension | 76.8 x 47.5 x 35mm | ||||
1. Input Voltage & Frequency: The range of input voltage is from 90Vac to 264Vac with a single phase.
2. Input AC Current: 0.7Amax @ 100-240Vac input & Full load.
3. Inrush Current (cold start): The inrush current will not exceed 60A at 100-240Vac input and Max load for a cold start at 25°C.
4. Efficiency: While input 115Vac and 230Vac, the average efficiency is more than 86.20%. The test point is at 25%, 50%, 75% and 100% of max load respectively.
5. No Load Power Consumption: While input 115Vac or 230Vac and the output is no load, the input power loss must be less than 0.1W.
6. Capacitance Load: While input 100~240Vac and capacitance load is 470uF, the adapter can turn on normally and the output is in the rated range.
7. Output Load Transient Response: The output shall not exceed 10% of the nominal output voltage, load fluctuation: from 20% to 80%, R/S: 0.5A/uS, frequency: 100Hz duration and 8mS at 80%.
8. Over Current Protection: Over Current Point Limited: I > 2.6A. The output shall hiccup when the over currents applied to the output rail, and shall be self-recovery when the fault condition is removed.
9. Short Circuit Protection: The input power shall decrease when the output rail short, the power supply shall no damage, and shall be self-recovery when the fault condition is removed.
10. Over Voltage Protection: The power supply shall protect when the output over voltage.
11. Operating Conditions: Operating Temperature and Relative Humidity: 0°C to +40°C , 10%RH to 90%RH.
12. Storage Conditions: Storage Temperature and Relative Humidity: -20°C to +80°C, 5%RH to 95%RH non-condensing @ Sea level shall be low 10,000 feet.
13. Vibration Test: 10 to 300Hz sweep at a constant acceleration of 1.0G (Breadth: 3.5mm) for 1 Hour for each of the perpendicular axes X, Y, Z.
14. Drop Test: Height: 1m; the product should be fell off on the plank with the thickness of at least 53mm, and the plank should be put on the cement ground or on the ground without flexibility. Random surface in all 3 times.
15. Reliability Requirements: Burn-in: The power supply shall be burn-in at least 4 Hours under normal input and 80% rated load at 40°C ± 5°C. MTBF Qualification: The MTBF shall be at least 50,000 hours at 25°C, Full load and nominal input condition.
16. EMI Standards/EMI: FCC Part15 class B, EN55032.
17. EMS Standard/EMS: EN55035.
18. Safety Standards: Safety accord with UL62368-1, CSA C22.2 NO. 62368-1-14, IEC62368-1, EN62368-1. Note: AC pins corresponding to relative national standards.
19. Dielectric Strength (Hi-pot): Primary to Secondary: 4242VDC or 3000VAC / 5mA Max / 60 seconds (3 seconds for mass production).
20. Leakage Current: 0.25mA max. at 264Vac / 50Hz.
21. Insulation Resistance: 50MΩ min. at primary to secondary add 500Vdc test voltage.
The input voltage ranges from 90Vac to 264Vac with a single phase, supporting standard AC inputs of 100-240Vac at 50-60Hz.
This system complies with international safety standards including UL62368-1, CSA C22.2 NO. 62368-1-14, IEC62368-1, and EN62368-1.
Yes, it features both Over Current Protection (hiccup mode, self-recovery above 2.6A) and Short Circuit Protection (self-recovery when the fault is removed, with no damage to the power supply).
The MTBF (Mean Time Between Failures) is rated at a minimum of 50,000 hours under 80% load and 25°C operating environment conditions.
The standby power loss is highly optimized to be less than 0.1W when inputting 115Vac or 230Vac under no-load conditions.
All units undergo comprehensive testing, including ESD, EMC, lightning surge, temperature rise, mechanical plug testing, drop tests, and IPXX waterproof testing.
