OEM ENERGY STORAGE CONTAINER (1MWH-2MWH) Supplier, Factories

1 / 4

OEM ENERGY STORAGE CONTAINER (1MWH-2MWH) Supplier, Factories

Elite Power 1MWh and 2MWh energy storage containers are designed to optimize energy management and are ideal for storing excess renewable energy, stabilizing grid operations, or providing backup power for critical infrastructure.Â Those energy storage containersÂ provide large-scale, scalable energy storage solutions for industrial, commercial, and utility applications.

Send Inquiry

Product Description

Product Description Product Details

Energy Storage System Product Advantage

High Capacity Utility Solutions

The capacity of the 1MWh and 2MWh energy storage containers is 2064kWh (20 feet) and 2238kWh (20 feet headquarters), respectively, making them ideal for utility and commercial applications such as renewable energy plants, factories, and buildings. These easy-to-install battery storage systems (BESS) can be quickly connected to existing equipment. With advanced battery management systems (BMS) and cloud-based platforms, they offer a smooth and efficient user experience.

Application Areas

• Smooth New Energy Output
• Voltage, Frequency Support, Frequency Modulation
• Peak Valley Arbitrage
• Demand Management
• Construction of Microgrid

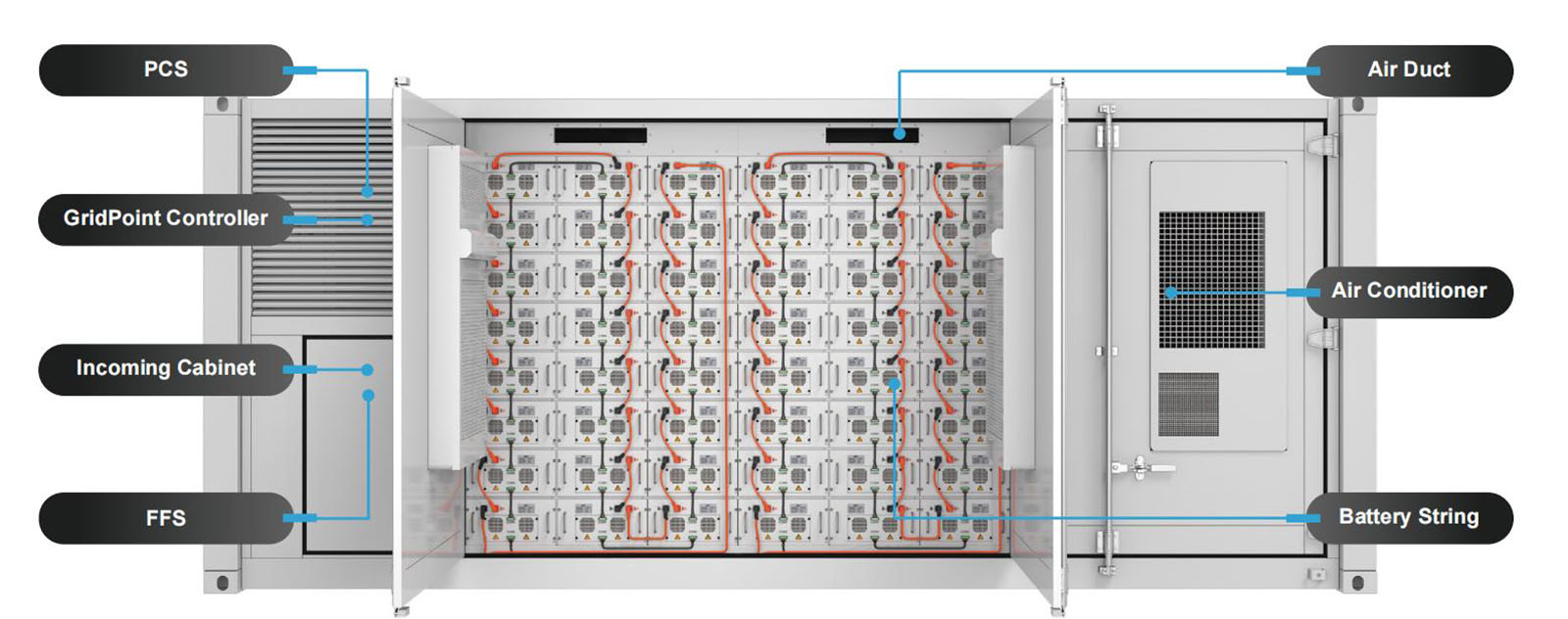

Product Layout

Technical Specifications Product Specification

class="esp_table_section_header"

Item	1MW/2.0MWh	1.1 MW/2.2MWh
DC Data
Battery Chemistry	Lithium-Iron Phosphate (LFP)
Cell Life Cycle	80% Retention with 5,000 Cycles 0.5C ~ 25°C
Cell spec	3.2V / 280Ah
String Configuration	1P 384S	1P 416S
Number of Strings	6
Rated Energy Capacity	2MWh	2.2 MWh
DC Rated Energy Capacity	2,064.36 kWh	2,236.44 kWh
Rated Voltage	1,228.8V	1,331.2V
Voltage Range	1,075.2V ~ 1,363.2V	1,164.8V ~ 1,476.8V
BMS Communication Interface	RS485, Ethernet
BMS Communication Protocol	Modbus RTU, Modbus TCP
AC Data
Rated AC Power	1,000 kW	1,100 kW
Maximum AC Power	1,320 kW
Rated Voltage	690V
Grid Voltage Range	586.5 ~ 759V (Optional)
AC Rate of Current	836.8A	920.5A
Output THDi	< 3%
AC PF	0.1 ~ 1 leading or lagging (controllable)
AC Output	Three-phase and three-wire
General Data
Dimension w/o clearances (LWH)	6058 x 2438 x 2591 mm	6058 x 2438 x 2896 mm
Weight of the whole system	24t	25.5t
Degree of protection	IP65
Operating Temperature range	-20 ~ 40°C
Relative Humidity	0 ~ 95% (non-condensing)
Max Working Altitude	4,000 m / 13,123 ft
Cooling concept of DC Hatch	HVAC
Fire Fighting System	NOVEC1230 / FM-200
Communication Interfaces	RS485, Ethernet, GPRS
Certificates	UL9540, IEC62619, IEC62109, IEC62933, UN3536, etc.

Detailed Product Views

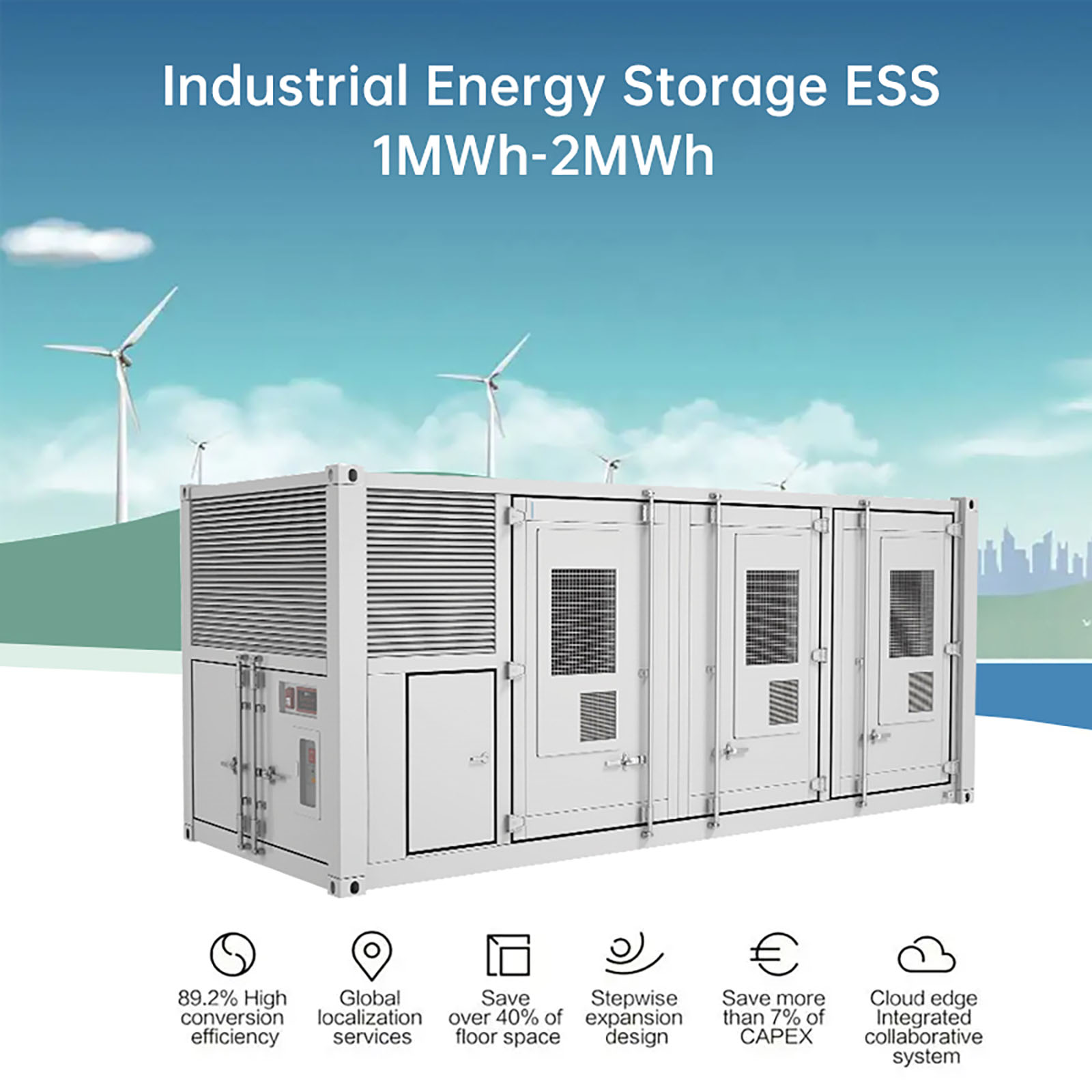

1MWh-2MWh Industrial Energy Storage Detail 1

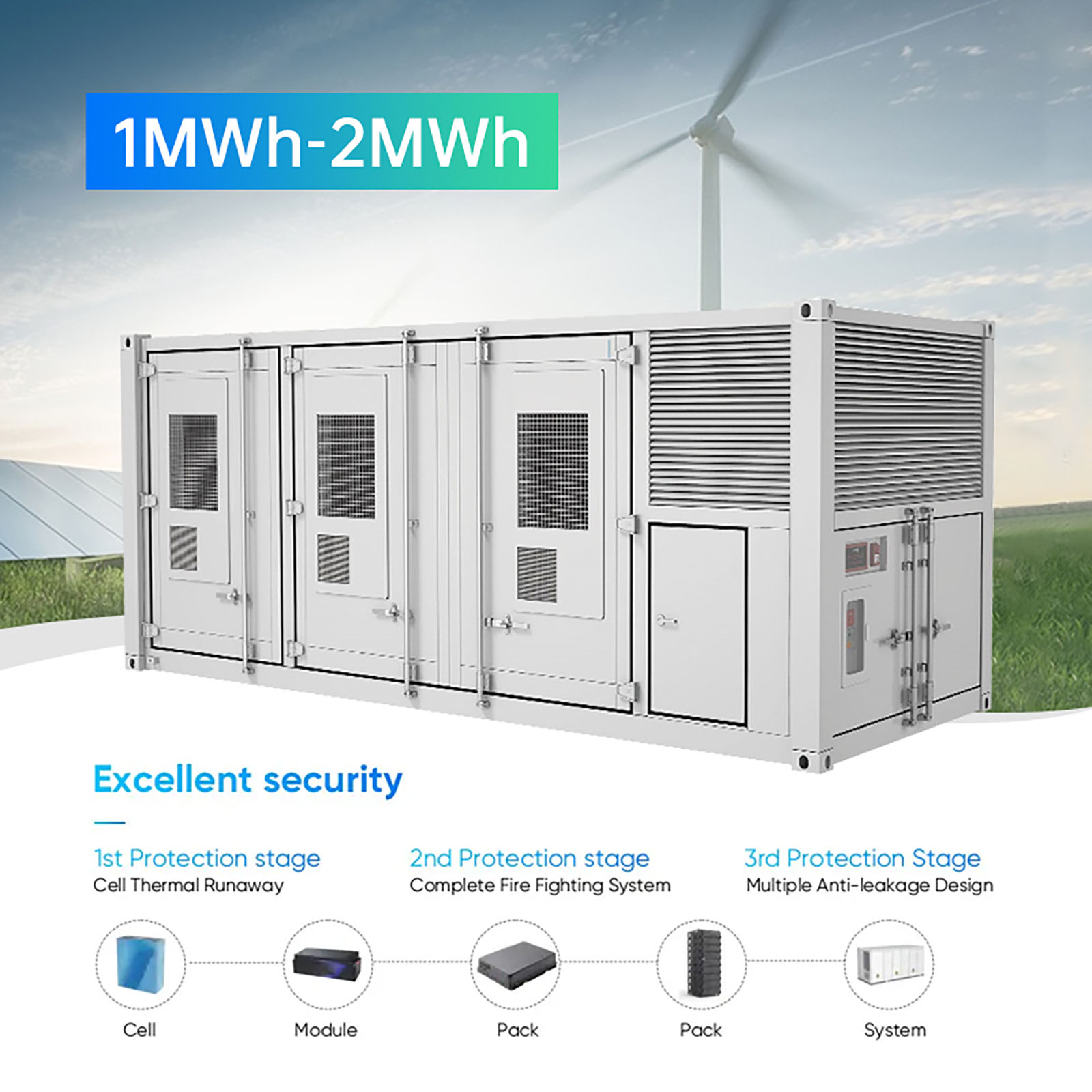

1MWh-2MWh Industrial Energy Storage Detail 2

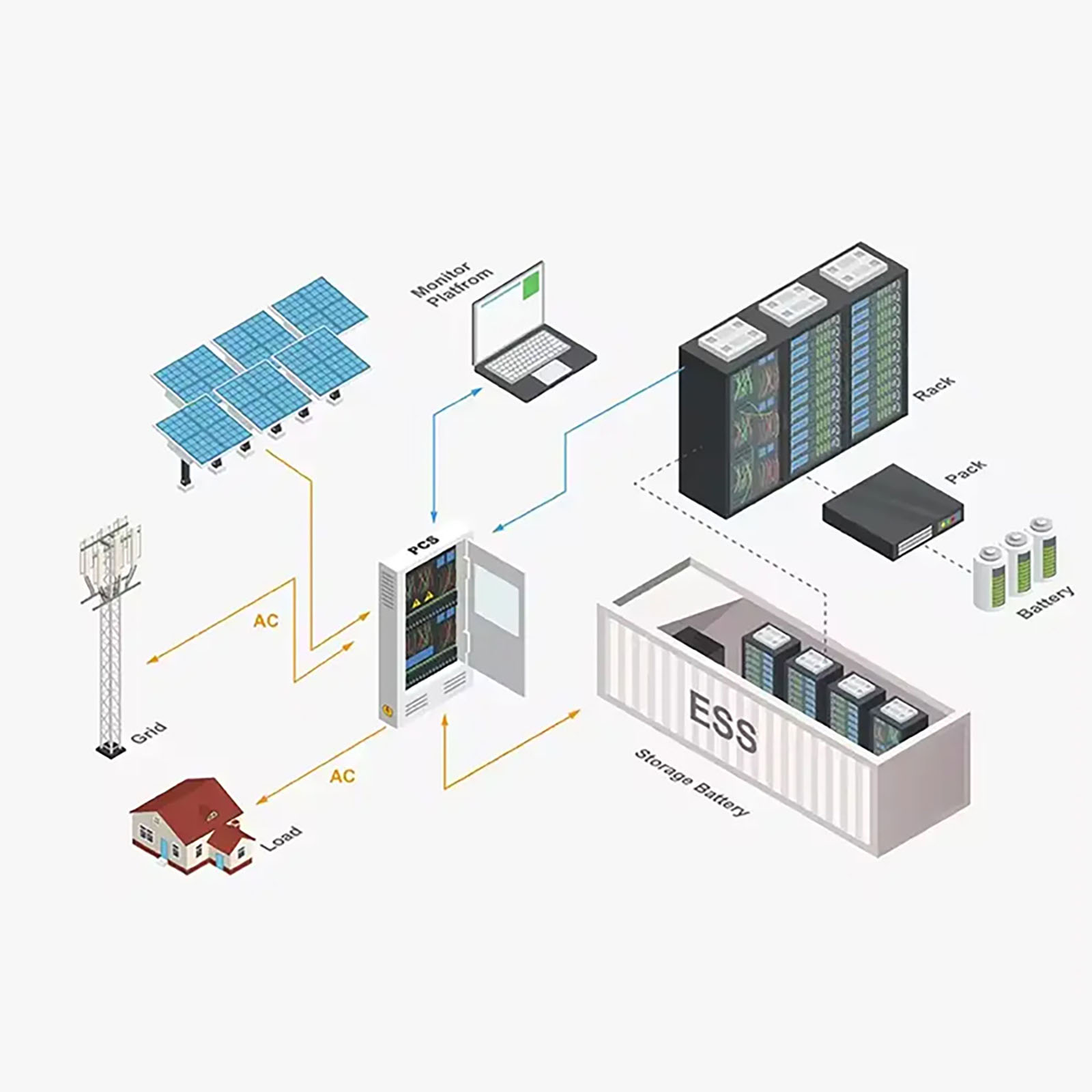

1MWh-2MWh Industrial Energy Storage Detail 3

Common Questions Frequently Asked Questions

What battery technology is used in these containers?

The storage system is built using high-performance Lithium-Iron Phosphate (LFP) chemistry, renowned for its superior safety, long cycle life, and thermal stability under demanding operational conditions.

What is the lifespan and cycle rating of the battery cells?

The battery cells support over 5,000 cycles at a 0.5C charge/discharge rate at an ambient temperature of 25°C, maintaining at least 80% of their original capacity.

What safety mechanisms are built into the container?

Safety is handled via integrated advanced HVAC systems for active thermal management, coupled with a professional fire suppression system utilizing NOVEC1230 or FM-200 gas agents.

What protocols are supported for system communication?

The integrated Battery Management System (BMS) interfaces through RS485 and Ethernet connections, fully supporting industry-standard Modbus RTU and Modbus TCP communication protocols.

Is this system certified for grid connections globally?

Yes, our energy storage solutions are certified to meet major international regulatory and safety standards, including UL9540, IEC62619, IEC62109, IEC62933, and UN3536.

Can these containers operate in extreme environments?

Yes. Designed for robust performance, the system functions smoothly within an operating temperature range of -20°C to 40°C, and is rated for operation at altitudes of up to 4,000 meters (13,123 feet).
